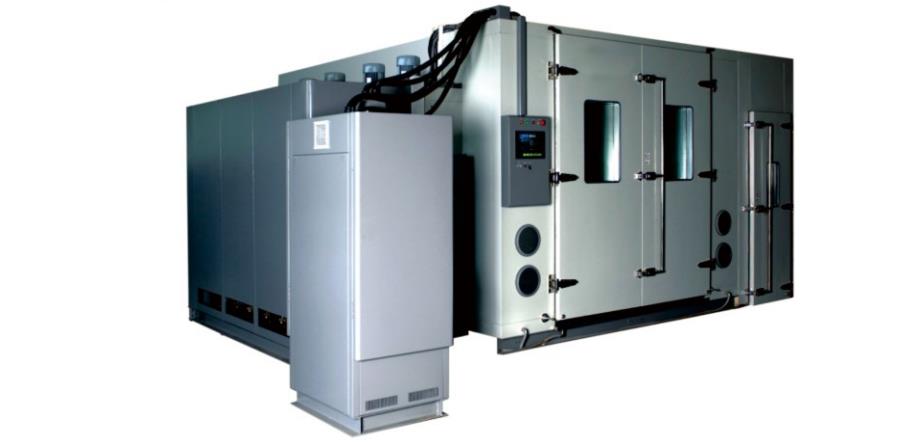

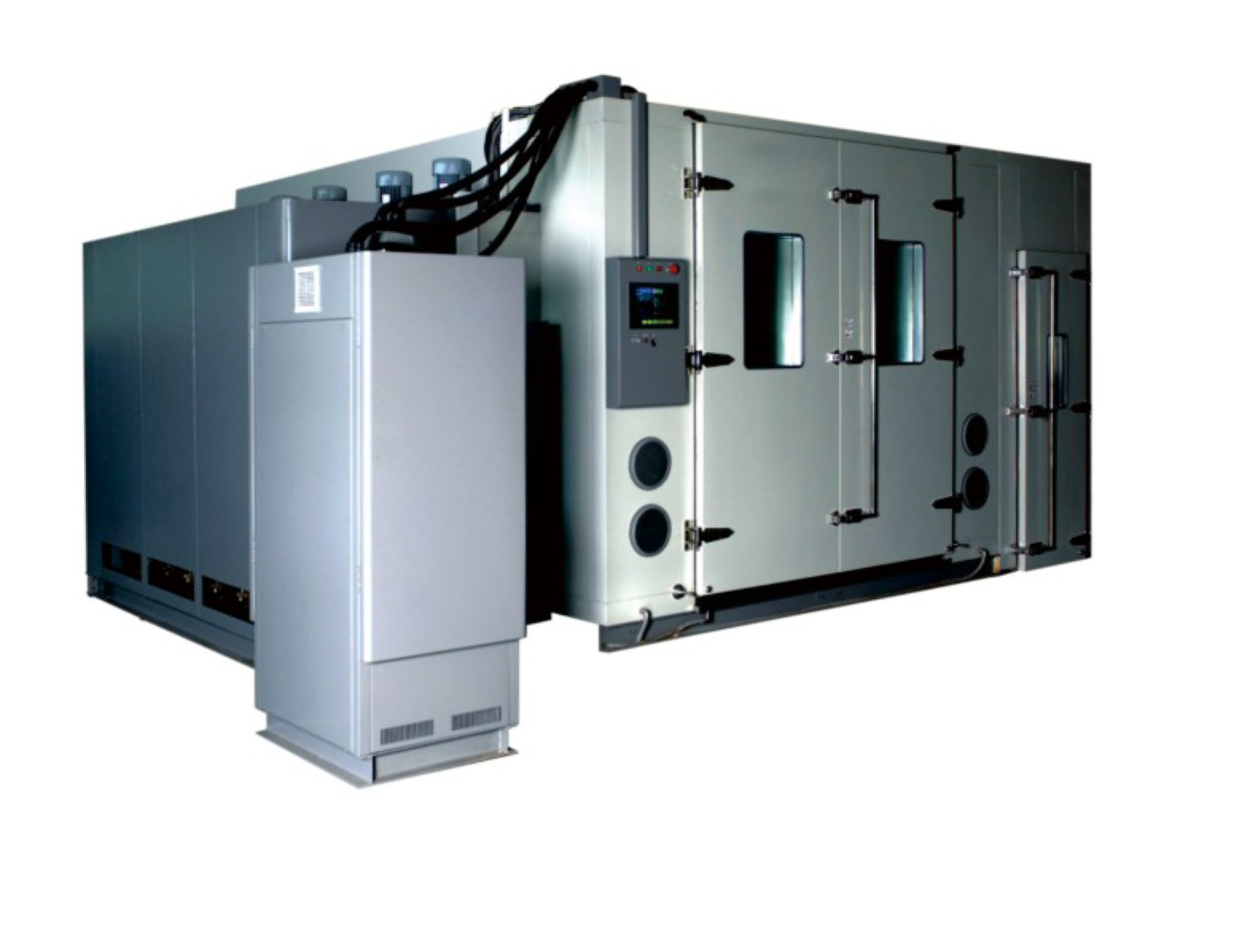

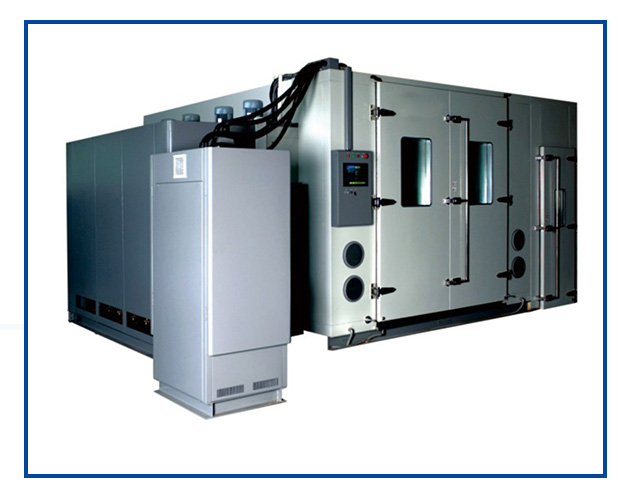

大型恒温恒湿房
产品简介ProductIntroduction
步入式恒温恒湿试验箱主要由控制面板、电器面板、保湿板、吹风机、加热器、加湿器、冷冻机等，为大型零件、半成品、
成品的温度、湿度测试提供了大量的备品。它适用于大型或数量较多的产品的测试，如计算机终端、汽车零部件等。
Walk-In?Environmental Test?Room is equipped with control panel,electrical panels, Moisturizing plate blower
heater.humidifier. freezer.lt provide a larae spare to test the temperature and humidity for larae-scale parts, semi
finished products.finished products.lt applied to test products that larae-scale or the auantitv more. such as
computer terminals,vehicle parts.
产品参数：
| 型号Model | FSG-I(低温选择K-B) |
| 尺寸WxHxD(cm)Dimensions | 客户指定的空间尺寸和设计 Customers designated space size and design |
| 内箱尺寸Inter Dimensions(Wxhxd)cm | 10立方15立方 20立方30立方 50立方 100立方 |
| 温度范围Temperature Range | -65℃~+80℃(A:0℃B:-20℃C40℃D-65℃)，要求可达高温110度费用会增大很多 |
| 湿度范围Humidity Range | 20%~95%R.H. |
| 升温/降温时间Temperature Rising/Falling Time | 约4℃/分钟:约1.0℃-1.5℃/分钟Approximately4.0℃/minute;approximately1.0℃-1.5C/minute |
| 温湿度解析精度/均匀度Analytic Accuracylevenness degree ofTemperatue and Humidity | +0.1℃:0.1%RH1+20℃;5.0%R.H. |
| 内外部材质Inner and Outer Materials | 箱体外表面采用彩钢板烧漆处理或畸涂不锈钢板。内部采用不锈钢材料The external surface of the chamber is made of color steel plate with paint-bakina treatment orspray-treated stainless steel plate: the interior is made of stainless steel. |
| 保温材质Insulation Materia | 耐高温高家摩氙基甲酸乙酷泡沫绝缘体材料Resistant to high temperature, high density, formate chiorine, ethyl acetum foam insulation materials |
| 冷却系统Cooling System | 水冷式单/双段压缩机 water cooling/double segment compressor |
| 保护装置Protection Devices | 无保险丝断路器、制冷剂高压保护开关、过热保护开关、烧水保护、烟感报警系统 No-fusebreaker, refrigerant high pressure protection switch, overheat protection switch, boil-bry protection and smoke detection alarming system |
| 配件parts | 记录仪(可选)观察窗。50mm测试孔。PL内部灯泡，隔板，干湿球纱网Recorder(optional)iwatching window.50mm testing hole. PL internal bulbs.partition plate, dry and wet ball gauze |
| 控制器control panel | 德国西门子PLC或韩国TH-900CGerman Siemens PLCor TH-900C Korea |
| 压缩机Compressor | 法国"泰康"牌Fran/s"Tecumseh |
| 电源Power | 3Φ380VAC±10%50/60HZ |
